Contactor LS MC-22b 48VDC 11kW 1NO1NC là dòng sản phẩm khởi động từ LS chất lượng cao, dòng định mức 22A, công suất 11kW tại 48VDC.

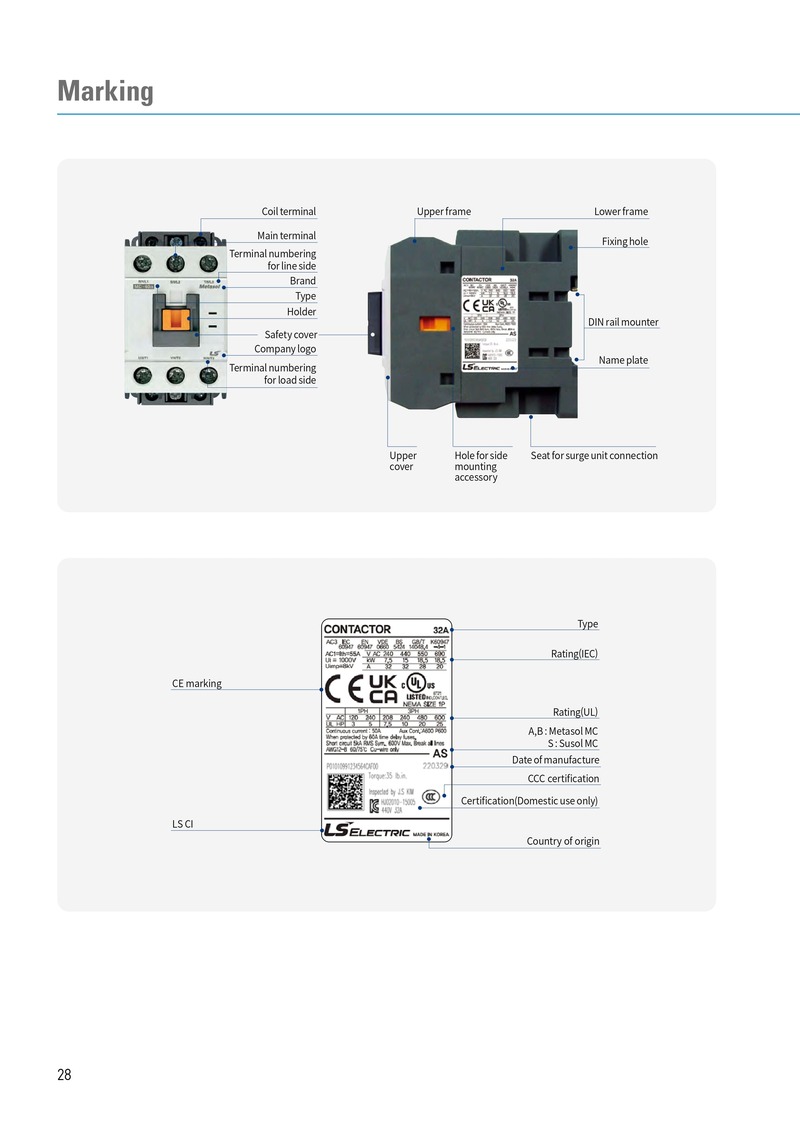

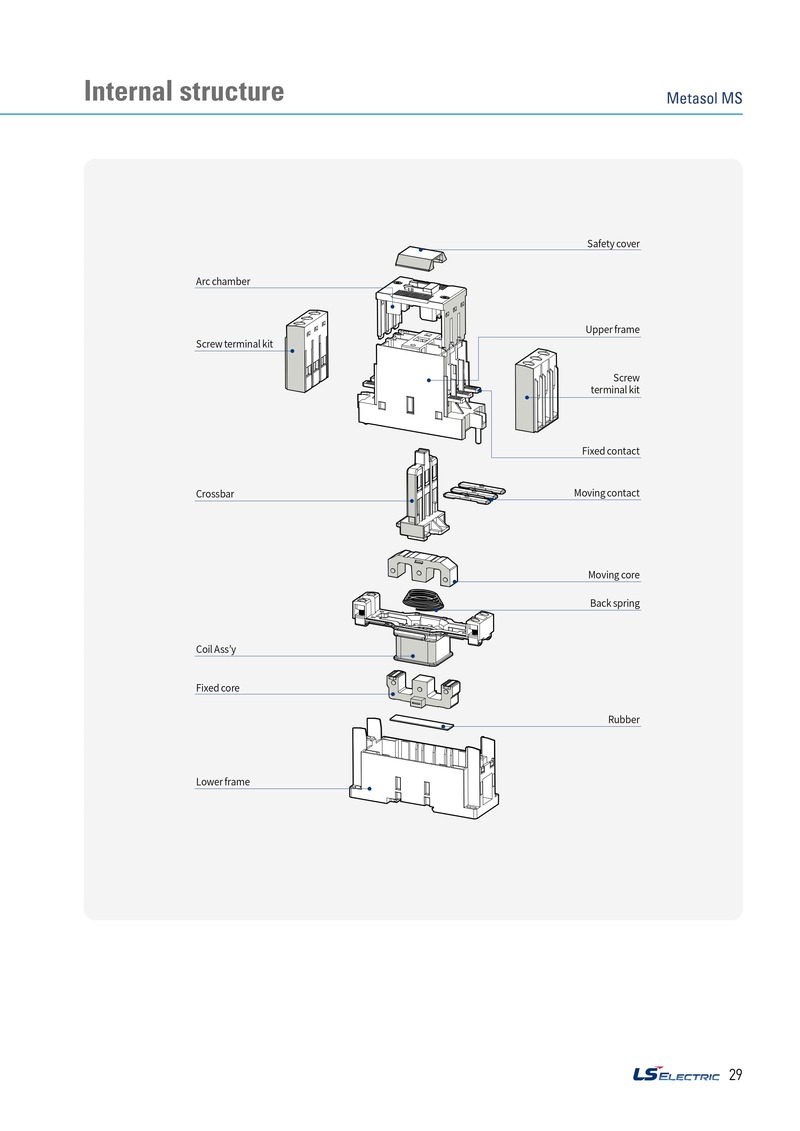

Tổng quan ngoại hình & cấu tạo LS MC-22b 48VDC (catalogue 28 & 29):

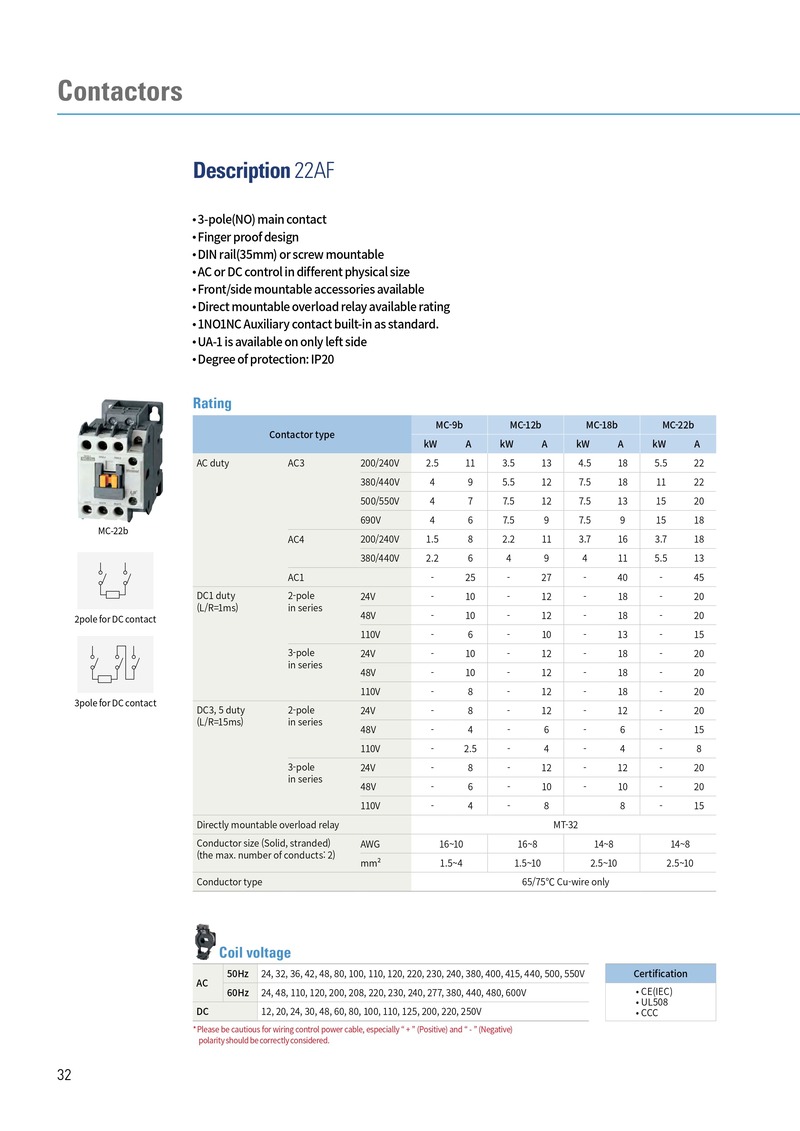

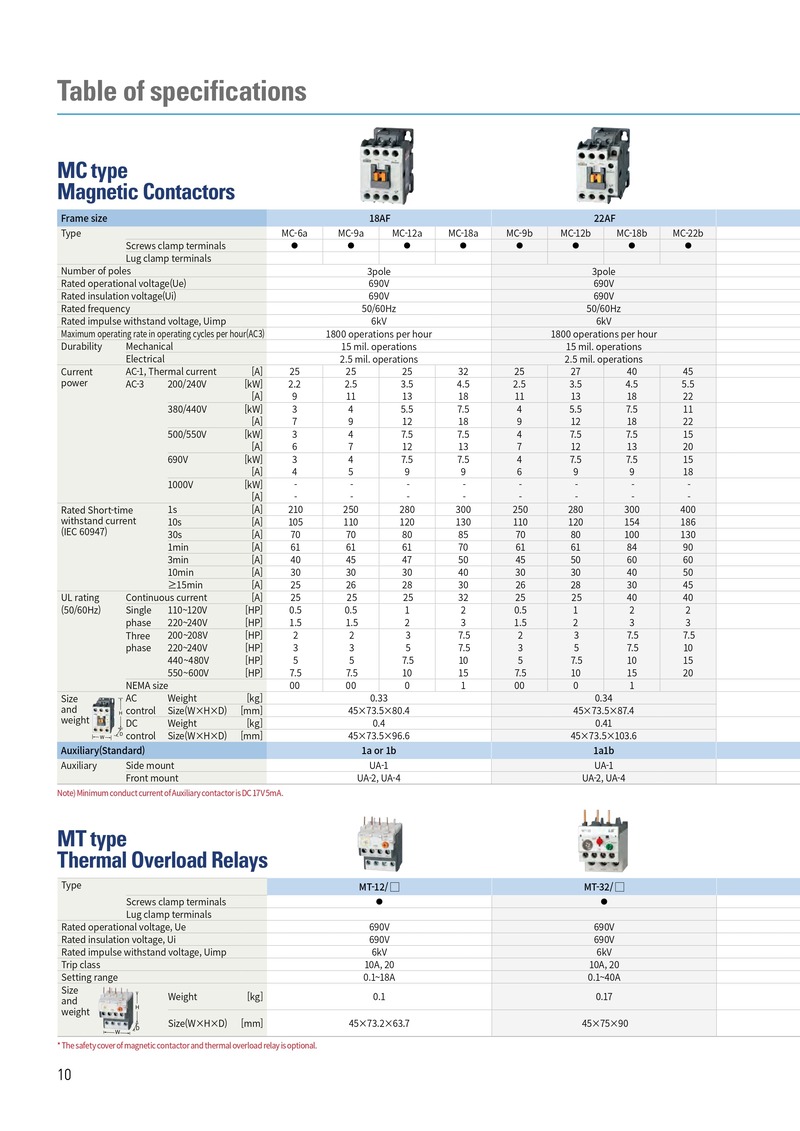

Thông số kỹ thuật contactor LS MC-22b 48VDC (catalogue 10 & 32):

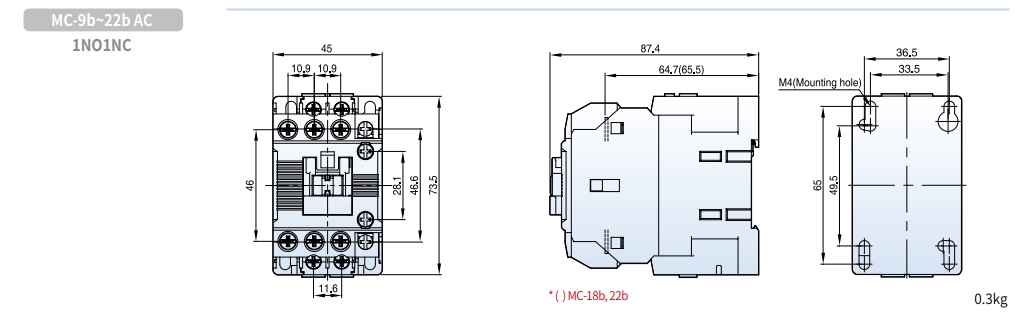

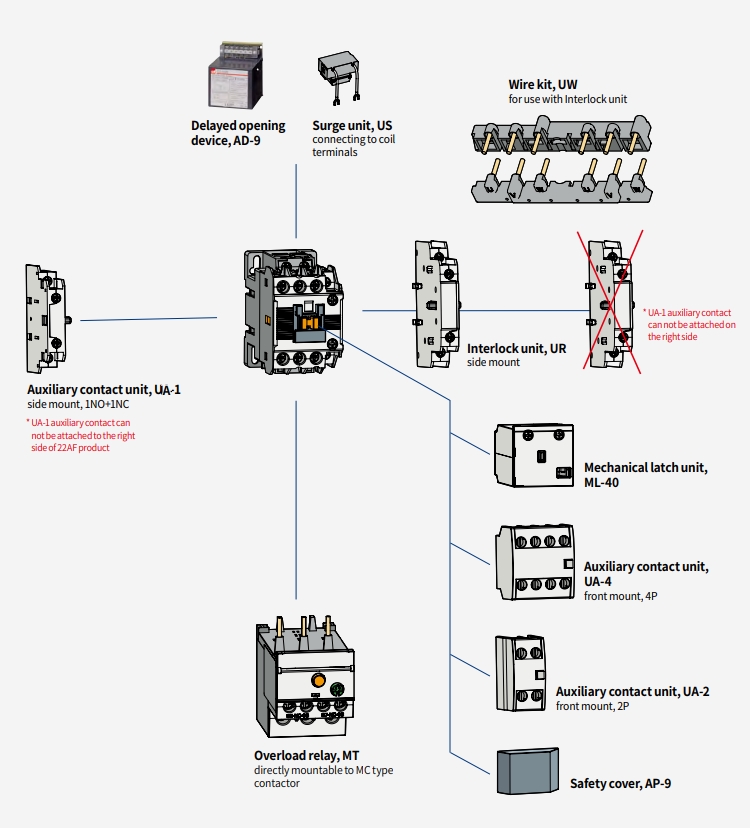

Kích thước contactor LS MC-22b 48VDC (mm) và phụ kiện

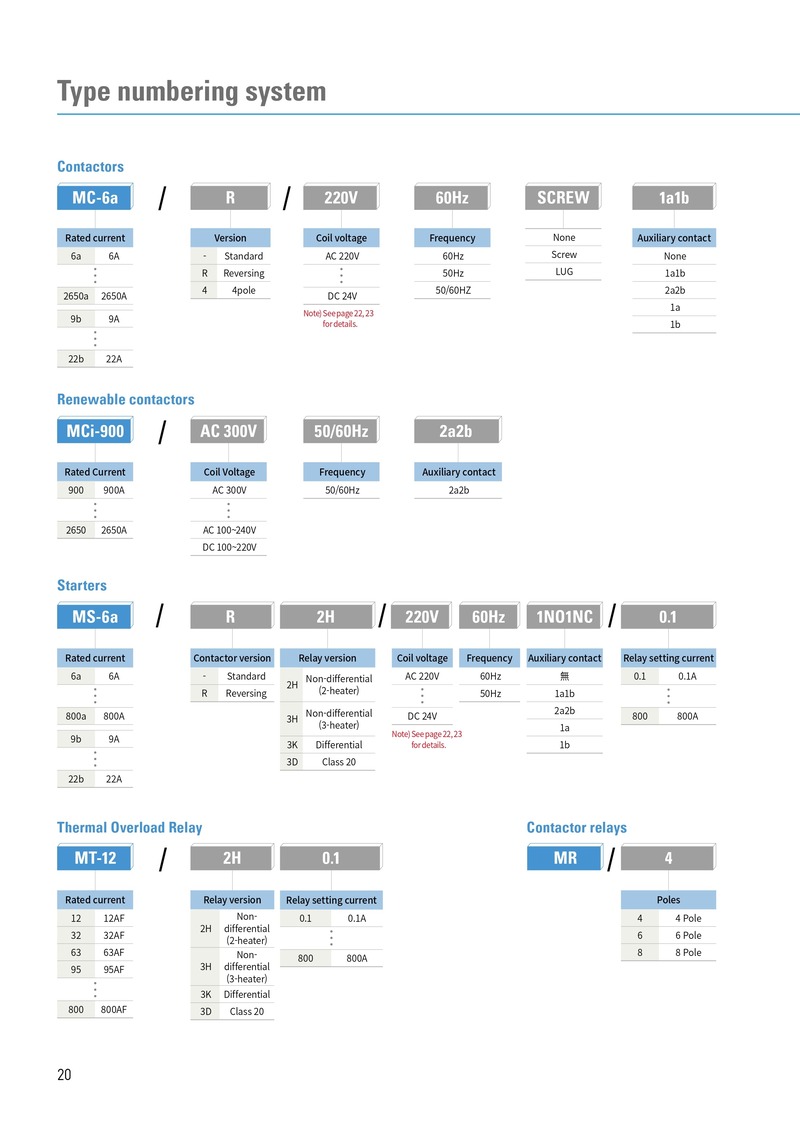

Cách đọc tên và lựa chọn sản phẩm contactor LS dòng Metasol (catalogue 20):
| Mã sản phẩm | Số cực | Dòng điện | Điện áp |
|---|---|---|---|
| MC-800a 220VAC | 3P | 800A | 220VAC |
| MC-800a 380VAC | 3P | 800A | 380VAC |
| MC-800a 110VAC | 3P | 800A | 110VAC |
| MC-630a 220VAC | 3P | 630A | 220VAC |
| MC-630a 380VAC | 3P | 630A | 380VAC |
| MC-630a 110VAC | 3P | 630A | 110VAC |
| MC-500a 220VAC | 3P | 500A | 220VAC |
| MC-500a 380VAC | 3P | 500A | 380VAC |
| MC-500a 110VAC | 3P | 500A | 110VAC |
| MC-400a 220VAC | 3P | 400A | 220VAC |
| MC-400a 380VAC | 3P | 400A | 380VAC |
| MC-400a 110VAC | 3P | 400A | 110VAC |
| MC-330a 220VAC | 3P | 330A | 220VAC |
| MC-330a 380VAC | 3P | 330A | 380VAC |
| MC-330a 110VAC | 3P | 330A | 110VAC |
| MC-265a 220VAC | 3P | 265A | 220VAC |
| MC-265a 380VAC | 3P | 265A | 380VAC |
| MC-265a 110VAC | 3P | 265A | 110VAC |
| MC-225a 220VAC | 3P | 225A | 220VAC |
| MC-225a 380VAC | 3P | 225A | 380VAC |
| MC-225a 110VAC | 3P | 225A | 110VAC |
| MC-185a 220VAC | 3P | 185A | 220VAC |
| MC-185a 380VAC | 3P | 185A | 380VAC |
| MC-185a 110VAC | 3P | 185A | 110VAC |
| MC-150a 48VDC | 3P | 150A | 48VDC |
| MC-150a 220VAC | 3P | 150A | 220VAC |
| MC-150a 380VAC | 3P | 150A | 380VAC |
| MC-150a 110VAC | 3P | 150A | 110VAC |
| MC-130a 220VAC | 3P | 130A | 220VAC |
| MC-130a 380VAC | 3P | 130A | 380VAC |
| MC-130a 110VAC | 3P | 130A | 110VAC |
| MC-100a 48VDC | 3P | 100A | 48VDC |
| MC-85a 48VDC | 3P | 85A | 48VDC |
| MC-100a 220VAC | 3P | 100A | 220VAC |
| MC-100a 380VAC | 3P | 100A | 380VAC |
| MC-100a 110VAC | 3P | 100A | 110VAC |
| MC-75a 48VDC | 3P | 75A | 48VDC |
| MC-85a 220VAC | 3P | 85A | 220VAC |
| MC-85a 380VAC | 3P | 85A | 380VAC |
| MC-85a 110VAC | 3P | 85A | 110VAC |
| MC-65a 48VDC | 3P | 65A | 48VDC |
| MC-75a 220VAC | 3P | 75A | 220VAC |
| MC-75a 380VAC | 3P | 75A | 380VAC |
| MC-75a 110VAC | 3P | 75A | 110VAC |
| MC-50a 48VDC | 3P | 50A | 48VDC |
| MC-65a 220VAC | 3P | 65A | 220VAC |
| MC-65a 380VAC | 3P | 65A | 380VAC |
| MC-65a 110VAC | 3P | 65A | 110VAC |
| MC-50a 220VAC | 3P | 50A | 220VAC |
| MC-50a 380VAC | 3P | 50A | 380VAC |
| MC-50a 110VAC | 3P | 50A | 110VAC |
| MC-40a 48VDC | 3P | 40A | 48VDC |
| MC-40a 220VAC | 3P | 40A | 220VAC |
| MC-40a 380VAC | 3P | 40A | 380VAC |
| MC-40a 110VAC | 3P | 40A | 110VAC |
| MC-32a 48VDC | 3P | 32A | 48VDC |
| MC-32a 220VAC | 3P | 32A | 220VAC |
| MC-32a 380VAC | 3P | 32A | 380VAC |
| MC-32a 110VAC | 3P | 32A | 110VAC |
| MC-18b 48VDC | 3P | 18A | 48VDC |
| MC-22b 220VAC | 3P | 22A | 220VAC |
| MC-22b 380VAC | 3P | 22A | 380VAC |
| MC-22b 110VAC | 3P | 22A | 110VAC |
| MC-18a 48VDC | 3P | 18A | 48VDC |
| MC-12b 48VDC | 3P | 12A | 48VDC |
| MC-18b 220VAC | 3P | 18A | 220VAC |
| MC-18b 380VAC | 3P | 18A | 380VAC |
| MC-18b 110VAC | 3P | 18A | 110VAC |
| MC-12a 48VDC | 3P | 12A | 48VDC |
| MC-9b 48VDC | 3P | 9A | 48VDC |
| MC-18a 220VAC | 3P | 18A | 220VAC |
| MC-18a 380VAC | 3P | 18A | 380VAC |
| MC-18a 110VAC | 3P | 18A | 110VAC |
| MC-9a 48VDC | 3P | 9A | 48VDC |
| MC-6a 48VDC | 3P | 6A | 48VDC |
| MC-12b 220VAC | 3P | 12A | 220VAC |
| MC-12b 380VAC | 3P | 12A | 380VAC |
| MC-12b 110VAC | 3P | 12A | 110VAC |
| MC-12a 220VAC | 3P | 12A | 220VAC |
| MC-9b 220VAC | 3P | 9A | 220VAC |
| MC-12a 380VAC | 3P | 12A | 380VAC |
| MC-9b 380VAC | 3P | 9A | 380VAC |
| MC-12a 110VAC | 3P | 12A | 110VAC |
| MC-9b 110VAC | 3P | 9A | 110VAC |
| MC-9a 220VAC | 3P | 9A | 220VAC |
| MC-9a 380VAC | 3P | 9A | 380VAC |
| MC-9a 110VAC | 3P | 9A | 110VAC |
| MC-6a 220VAC | 3P | 6A | 220VAC |
| MC-6a 380VAC | 3P | 6A | 380VAC |
| MC-6a 110VAC | 3P | 6A | 110VAC |
| MC-2650a 220VAC | 3P | 2650A | 220VAC |
| MC-2100a 220VAC | 3P | 2100A | 220VAC |
| MC-1700a 220VAC | 3P | 1700A | 220VAC |
| MC-1400a 220VAC | 3P | 1400A | 220VAC |
| MC-1260a 220VAC | 3P | 1260A | 220VAC |
| MC-1260a 380VAC | 3P | 1260A | 380VAC |
| MC-1400a 380VAC | 3P | 1400A | 380VAC |
| MC-1700a 380VAC | 3P | 1700A | 380VAC |
| MC-2100a 380VAC | 3P | 2100A | 380VAC |
| MC-2650a 380VAC | 3P | 2650A | 380VAC |
| MC-800a 48VDC | 3P | 800A | 48VDC |
| MC-630a 48VDC | 3P | 630A | 48VDC |
| MC-500a 48VDC | 3P | 500A | 48VDC |
| MC-400a 48VDC | 3P | 400A | 48VDC |
| MC-330a 48VDC | 3P | 330A | 48VDC |
| MC-265a 48VDC | 3P | 265A | 48VDC |
| MC-225a 48VDC | 3P | 225A | 48VDC |
| MC-185a 48VDC | 3P | 185A | 48VDC |
| MC-130a 48VDC | 3P | 130A | 48VDC |
| MC-800a/4 380V | 4P | 800A | 380VAC |
| MC-630a/4 380V | 4P | 630A | 380VAC |
| MC-500a/4 380V | 4P | 500A | 380VAC |
| MC-400a/4 380V | 4P | 400A | 380VAC |
| MC-330a/4 380V | 4P | 330A | 380VAC |
| MC-265a/4 380V | 4P | 265A | 380VAC |
| MC-225a/4 380V | 4P | 225A | 380VAC |
| MC-185a/4 380V | 4P | 185A | 380VAC |
| MC-150a/4 380V | 4P | 150A | 380VAC |
| MC-130a/4 380V | 4P | 130A | 380VAC |
| MC-100a/4 380V | 4P | 100A | 380VAC |
| MC-85a/4 380V | 4P | 85A | 380VAC |
| MC-75a/4 380V | 4P | 75A | 380VAC |
| MC-65a/4 380V | 4P | 65A | 380VAC |
| MC-50a/4 380V | 4P | 50A | 380VAC |
| MC-40a/4 380V | 4P | 40A | 380VAC |
| MC-32a/4 380V | 4P | 32A | 380VAC |
| MC-22a/4 380V | 4P | 22A | 380VAC |
| MC-18a/4 380V | 4P | 18A | 380VAC |
| MC-12a/4 380V | 4P | 12A | 380VAC |
| MC-9a/4 380V | 4P | 9A | 380VAC |
| MC-6a/4 380V | 4P | 6A | 380VAC |
| MR-4 380VAC 2NO2NC | 4P | 16A | 380VAC |
| MR-4 48VDC 2NO2NC | 4P | 16A | 48VDC |
| MR-6 380VAC 3NO3NC | 6P | 16A | 380VAC |
| MR-6 48VDC 3NO3NC | 6P | 16A | 48VDC |
| MR-8 380VAC 4NO4NC | 8P | 16A | 380VAC |
| MR-8 48VDC 4NO4NC | 8P | 16A | 48VDC |
